AM33 Project 1 Answers using wxMaxima

1 Problem 1

(%i1)

de: (1+x^2)*'diff(y,x) + x*y - 2 = 0;

Here's the easy way to solve it, given that Maxima's ode2 is able to solve this equation

(%i2)

ode2(de,y,x);

(%i3)

ic1(%,x=0,y=1);

(%i4)

y_series: taylor(rhs(%),x,0,10);

Here's how to solve the recurrence using mhw's enhanced solve_rec package
( not yet included in the standard Maxima distribution,
but available at http://www.netris.org/~mhw/maxima/solve_rec.html )

(%i5)

load(solve_rec_mhw);

(%i6)

eq: c[n+1] = -n/(n+1)*c[n-1];

(%i7)

solve_rec(eq, c[n], c[0]=1, c[1]=2);

Here's how to do it with Maxima's standard solve_rec package.

We must break the recurrence into two independent recurrences
of order 1: one for the even indices, and one for the odds.

First, we shift the recurrence by 1,
so that even n corresponds to even indices

(%i9)

load(solve_rec);

(%i10)

eq: eq, n=n+1;

Solve the recurrence for even indices

(%i11)

eq, n=k*2, c[n]:=ce[n/2], ratsimp;

(%i12)

solve_rec(%, ce[k], ce[0]=1);

(%i13)

%, k=n/2, ce[k]:=c[2*k], ratsimp;

(%i14)

define(c_even[n], rhs(%));

Now solve the recurrence for the odd indices

(%i15)

eq, n=k*2+1, c[n]:=co[(n-1)/2], ratsimp;

(%i16)

solve_rec(%, co[k], co[0]=2);

(%i17)

%, k=(n-1)/2, co[k]:=c[2*k+1], ratsimp;

(%i18)

define(c_odd[n], rhs(%));

Combine the even and odds into one unified array function

(%i19)

c[n] := if evenp(n) then c_even[n]
elseif oddp(n) then c_odd[n]
else '(c[n])$

(%i20)

makelist(c[n],n,0,10);

(%i21)

trunc(sum(c[n]*x^n,n,0,10));

2 Problem 2

(%i22)

kill(all);

(%i1)

Dy: t^2/(y^2-1);

Here we use mhw's drawdf package, which is not yet included in the
standard Maxima distribution, but available at
http://www.netris.org/~mhw/maxima/drawdf-demo.html

You may also use Maxima's standard plotdf package. Use the same
commands given below, but use "plotdf" instead of "wxdrawdf".

(%i2)

load(drawdf)$

(%i3)

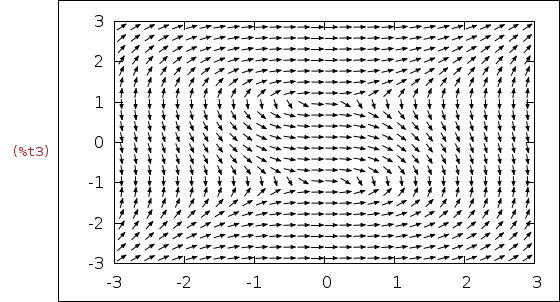

wxdrawdf(Dy, [t,y], [t,-3,3], [y,-3,3])$

(%i4)

forward_euler(yprime, tvar, yvar, t0, t1, y0, h) :=
    block([t:t0, y:y0, n:round((t1-t0)/h), k1],
        for i:1 thru n do (
            k1:at(yprime, [tvar=t, yvar=y]),
            y:y+h*k1,
            t:t+h
        ),
        y
    )$

(%i5)

Dy;

(%i6)

forward_euler(Dy, t, y, 0, 0.8, 0, 0.02);

(%i7)

forward_euler(Dy, t, y, 0, 0.8, 0, 0.01);

(%i8)

forward_euler(Dy, t, y, 0, 0.8, 0, 0.005);

3 Problem 3

(%i9)

Dy: 3 - 4*t - 2*y/t;

(%i10)

backward_euler(yprime, tvar, yvar, t0, t1, y0, h) :=
    block([t:t0, y:y0, n:round((t1-t0)/h)],
        for i:1 thru n do (
            t:t+h,
            y:find_root(v = y + h*at(yprime, [tvar=t, yvar=v]), v, -1e100, 1e100)
        ),
        y
    )$

(%i11)

backward_euler(Dy, t, y, 1, 2, 2, 0.05);

(%i12)

improved_euler(yprime, tvar, yvar, t0, t1, y0, h) :=
    block([t:t0, y:y0, n:round((t1-t0)/h), k1, k2],
        for i:1 thru n do (
            k1:at(yprime, [tvar=t, yvar=y]),
            k2:at(yprime, [tvar=t+h, yvar=y+h*k1]),
            y:y+h*(k1+k2)/2,
            t:t+h
        ),
        y
    )$

(%i13)

improved_euler(Dy, t, y, 1, 2, 2, 0.05);

(%i14)

modified_euler(yprime, tvar, yvar, t0, t1, y0, h) :=
    block([t:t0, y:y0, n:round((t1-t0)/h), k1, k2],
        for i:1 thru n do (
            k1:at(yprime, [tvar=t, yvar=y]),
            k2:at(yprime, [tvar=t+h/2, yvar=y+h*k1/2]),
            y:y+h*k2,
            t:t+h
        ),
        y
    )$

(%i15)

modified_euler(Dy, t, y, 1, 2, 2, 0.05);

Now we find the exact solution and value at t=2

(%i16)

ode2('diff(y,t)=Dy, y, t);

(%i17)

ic1(%, t=1, y=2);

(%i18)

expand(%);

(%i19)

%, t=2;

4 Problem 4

(%i20)

Dy: t^2 + y^2;

(%i21)

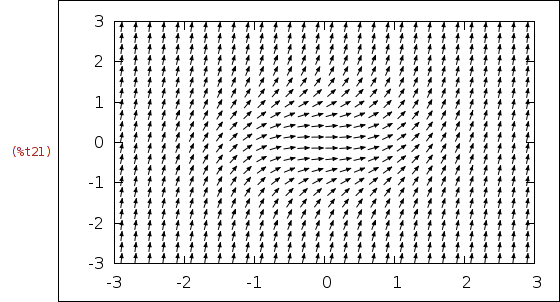

wxdrawdf(Dy, [t,y], [t,-3,3], [y,-3,3])$

(%i22)

predictor_corrector(yprime, tvar, yvar, t0, t1, y0, h) :=
    block([t:t0+h, lasty:y0, y, n:round((t1-t0)/h), k1, ypre, ycorr],
        y:improved_euler(yprime, tvar, yvar, t0, t, y0, h),
        for i:2 thru n do (
            k1: at(yprime, [tvar=t, yvar=y]),
            ypre: y + 3*h/2*k1 - h/2*at(yprime, [tvar=t-h, yvar=lasty]),
            ycorr: y + h/2*k1 + h/2*at(yprime, [tvar=t+h, yvar=ypre]),
            [lasty,y]:[y,ycorr],
            t:t+h
        ),
        y
    )$

(%i23)

predictor_corrector(Dy, t, y, 0, 0.5, 0, 0.05);
